ATLEX-FBG

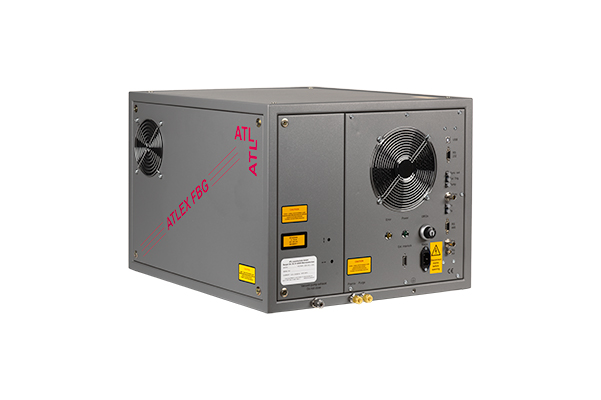

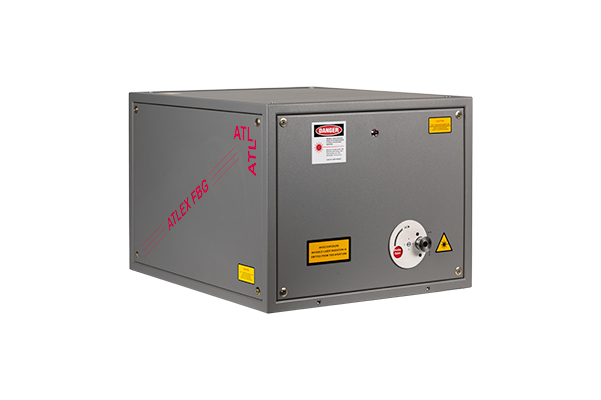

Ultra-compact, high efficient excimer laser for Fiber Bragg Grating (FBG) writing
.jpg)
.jpg)
.jpg)
.jpg)
ATLEX-FBG main features:
- Soft corona preionization
- HV-solid state pulser
- Laser head volume < 3l
- TMC (Total-Metal-Ceramic) Vessel
- Integrated vacuum pump & halogen filter
- Air Cooled / Optional Liquid Cooled, active thermal management
- RS-485, RS232, USB and fiber optic Interface for system integration
- Flushable optics holder
- Energy stabilization mode
- Dynamic fan speed controls
- Meets European CE-standard
- RoHS compliance
|
ATLEX-FBG Specifications
|
|||
|
Gas Medium
|
ArF | KrF | Units |
|
Wavelength
|
193 | 248 | nm |
|
High Voltage Switching Technique
|
Solid State Switch | ||
|
Maximum Pulse Energy 1
|
8 | 15 | mJ |
|
Stabilized Pulse Energy
|
4 | 8 | mJ |
| Stabilized Average Power ATLEX-300-FBG ATLEX-500-FBG |
1.2 2 |
2.4 4 |
W W |
| Max. Rep Rate ATLEX-300-FBG ATLEX-500-FBG |
300 500 |
Hz Hz |
|
| Spatial Coherence (Vertical Beam Direction) | >300 | µm | |
|
Pulse Duration 2
|
5 – 8 | ns | |
|
Beam Dimensions 2 (V x H)
|
4 x 6 | mm | |
|
Beam Divergence 2 (V x H)
|
1 x 2 | mrad | |
|
Energy Stability (standard deviation)
|
< 2 | % | |
|
Dimensions (LxWxH)
|
540 x 470 x 370 | mm | |
|
Weight
|
60 | kg | |
|
Cooling
|
Air / Liquid | ||
|
Power requirements
|
230 VAC / 6,3 A / 1 phase / 50-60 Hz | ||
|
All specifications are typical data and subject to change without notice due to product improvements. 1 Measured at 20Hz; allow 10% reduction of output energy and power for laser equipped with stabilization mode. |
|
ATLEX-L-FBG upon request. |
